How to Convert a PDF Floor Plan Into a 3D Home You Can Walk Through

A PDF is a picture of a home, not a home. This is the long version, filmed end to end: the same drawing an architect would send you, turned into a model you can stand inside.

Watch it (11 minutes)

It takes about ten minutes the first time and two or three once you know the moves. Here is every step in writing.

Step 1 — The drawing you start with

A floor plan PDF at 1:75 scale with a garden, living room, kitchen, hallway, three bedrooms, an ensuite and a bathroom, each labelled with its area — The source PDF: nine rooms, 155.4 m² total, drawn at 1:75.

This is an ordinary architect's PDF — walls in black, room names, areas, a scale bar in the corner. Nothing about it is special, and that is the point. Drag it onto walkmyplan.com and the drawing becomes the paper you work on.

Step 2 — Your drawing, with tracing paper over it

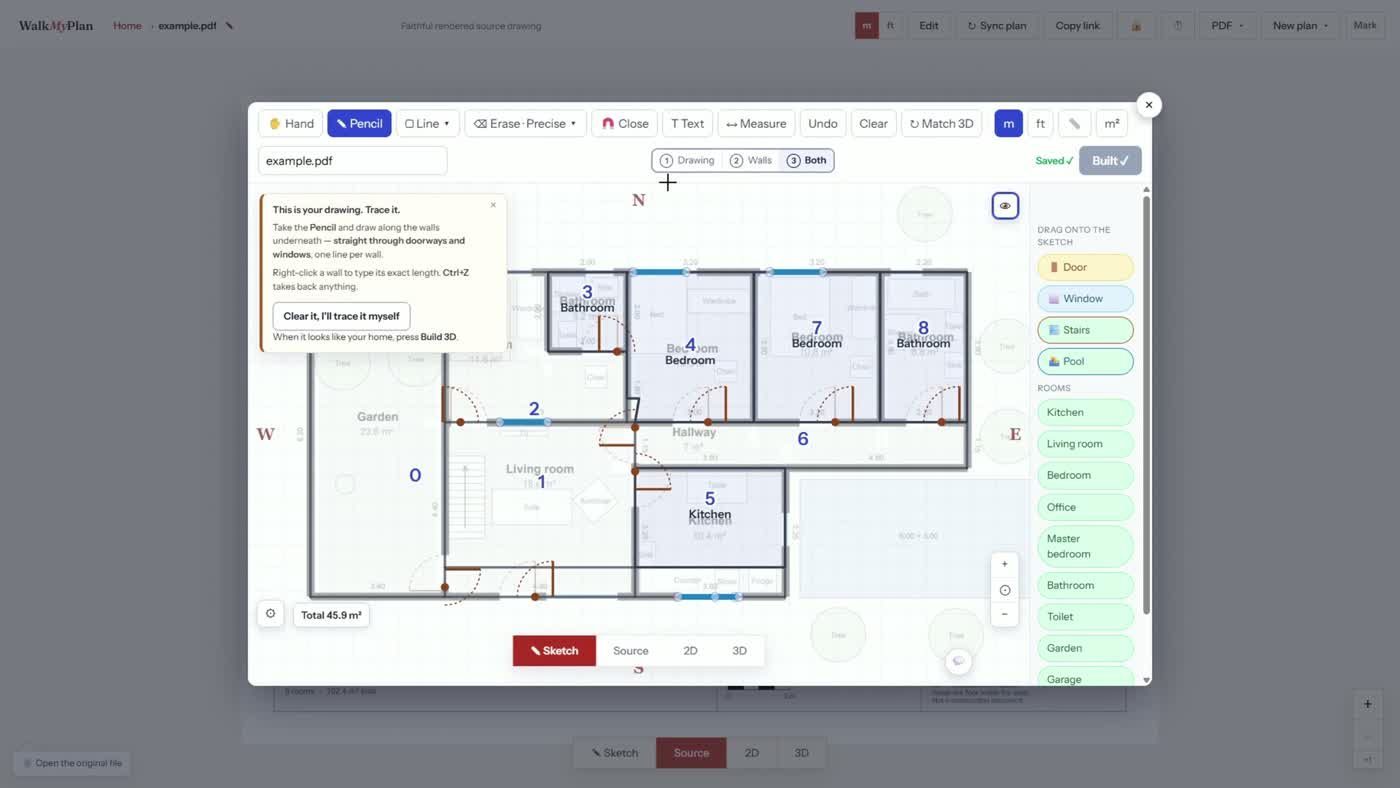

The WalkMyPlan sketch editor opening with the uploaded PDF underneath and a tip card explaining how to trace it — The app reads the plan first, numbers the rooms it found, and tells you what to do next.

The drawing goes under the sketch pad and the pad stays empty — the walls are yours to draw. The card in the corner says it plainly: take the pencil and draw along the walls underneath, straight through doorways and windows, one line per wall. A DWG is different: real CAD geometry is read directly, so a DWG often arrives already built.

The three tabs that keep you oriented

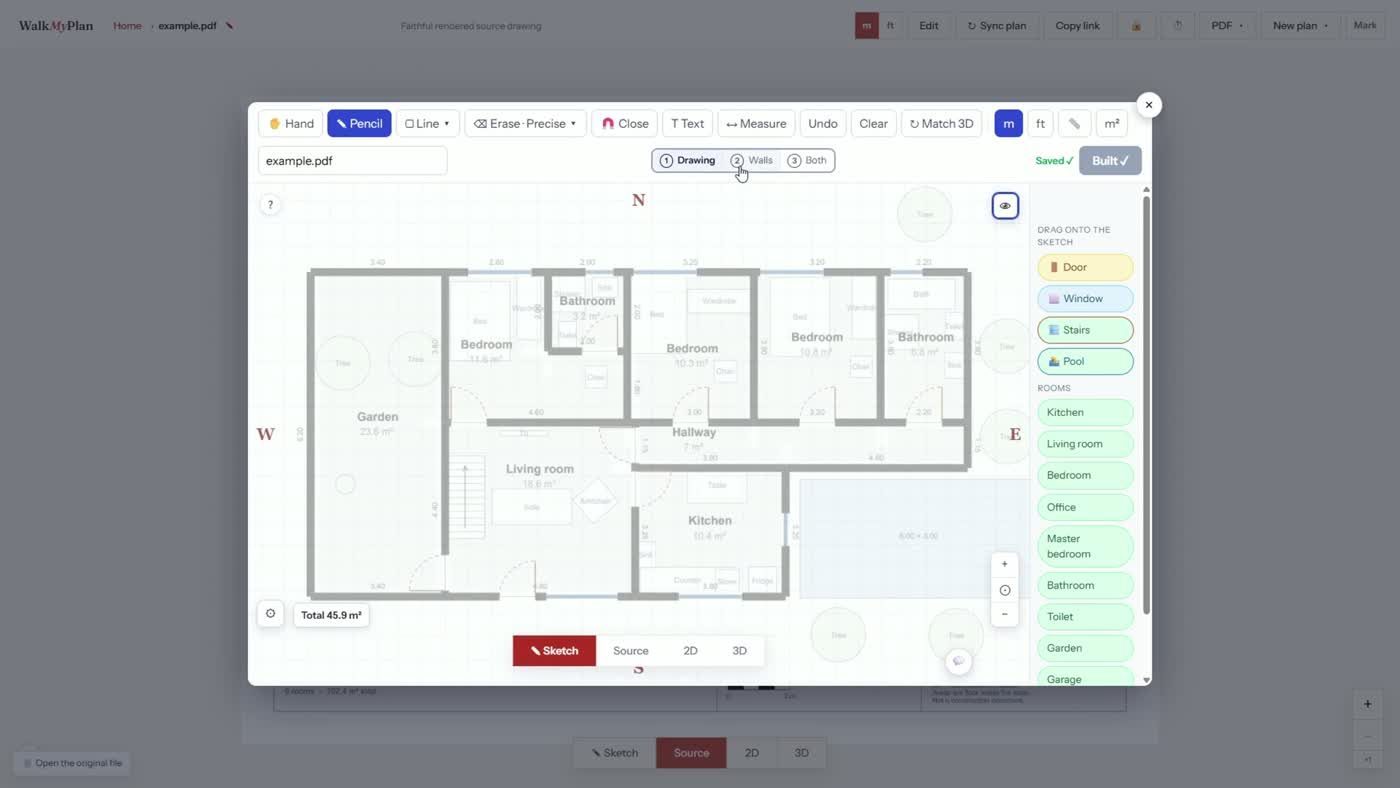

The Drawing, Walls and Both tabs above a floor plan, switching between the original PDF and the traced walls — **Drawing** is the PDF. **Walls** is your tracing. **Both** lays one over the other.

These three little tabs do more work than anything else on the screen. Trace in Both so you can see the lines you are following, then flip to Walls to check your work without the drawing confusing you.

Step 3 — Follow the lines

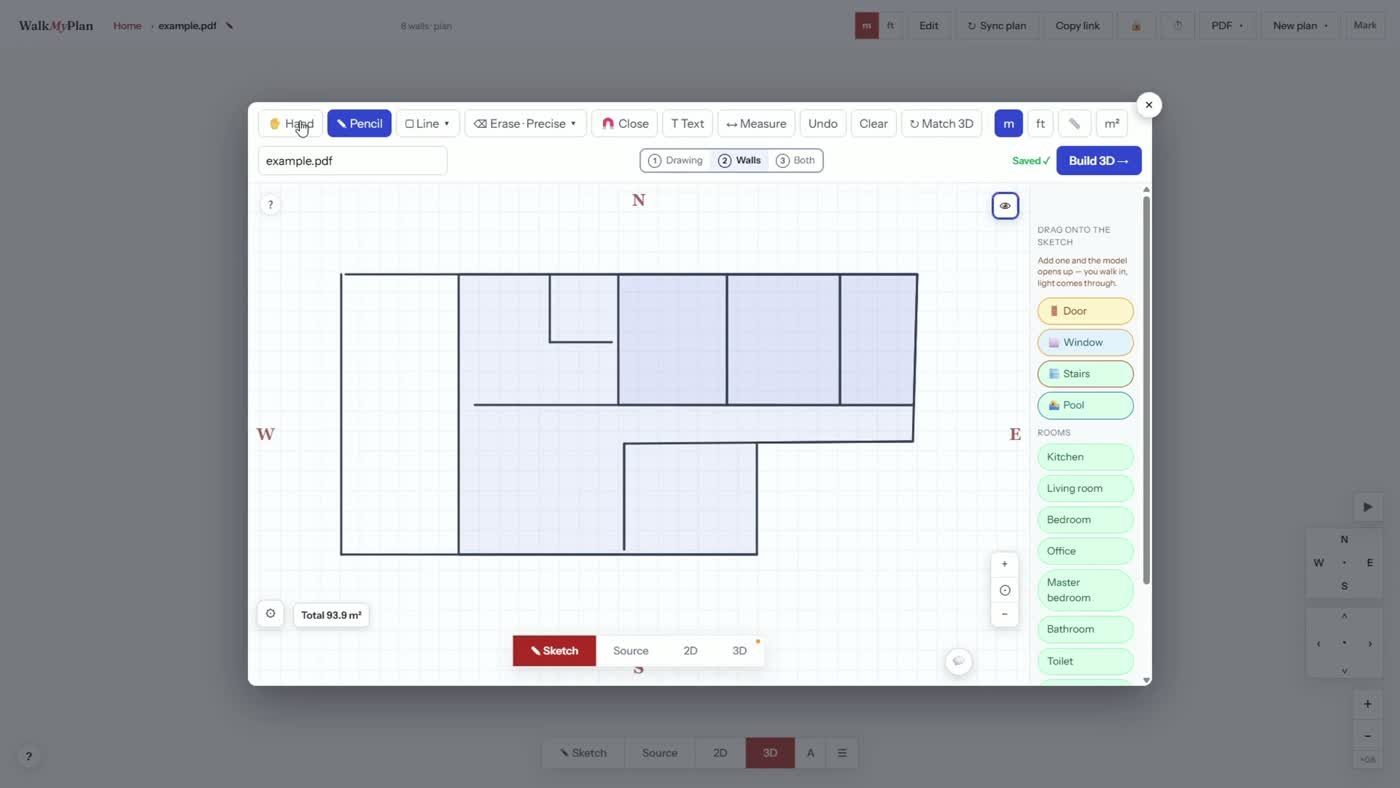

Traced walls shown alone on the sketch pad, forming the outline and internal rooms of the floor plan, totalling 93.9 square metres — Walls only. Every closed shape has become a room that measures itself.

Draw along each wall. Lines snap straight, and the moment a shape closes it becomes a room with its own area. Where the drawing shows a gap for a door, run the wall straight through it — doors are their own thing and come later.

Step 4 — Tell it how big the house really is

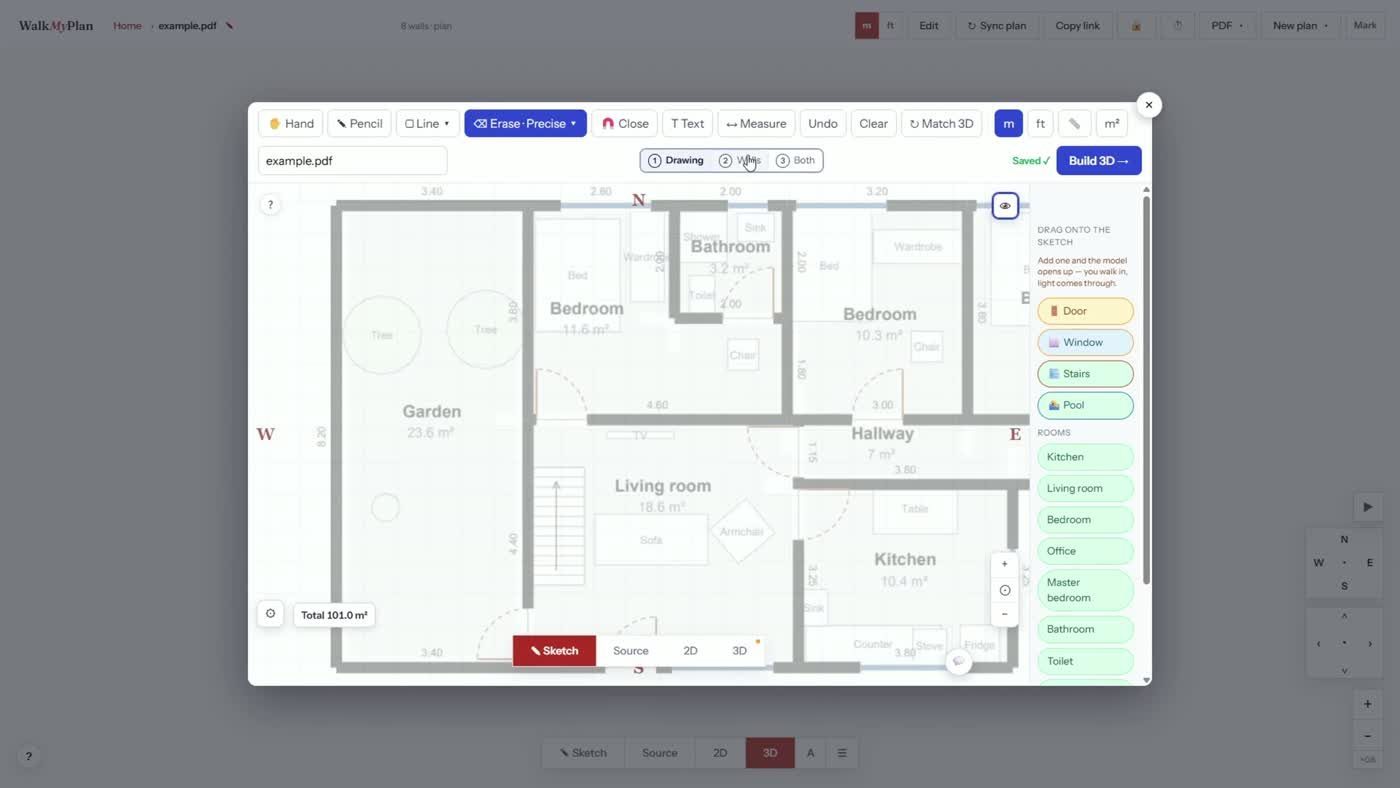

The traced walls laid over the original PDF drawing after rescaling, now reading 101.0 square metres — After the scale is set, the tracing sits exactly on top of the drawing.

A tracing has no real size until you give it one. Find one wall you know the length of, right-click it, and type the real number — the whole plan rescales around it. Get this right and everything downstream is right: the doors fit, the furniture fits, and any realistic image you render later looks like a real room instead of a doll's house.

Step 5 — Doors, windows, and anything outside

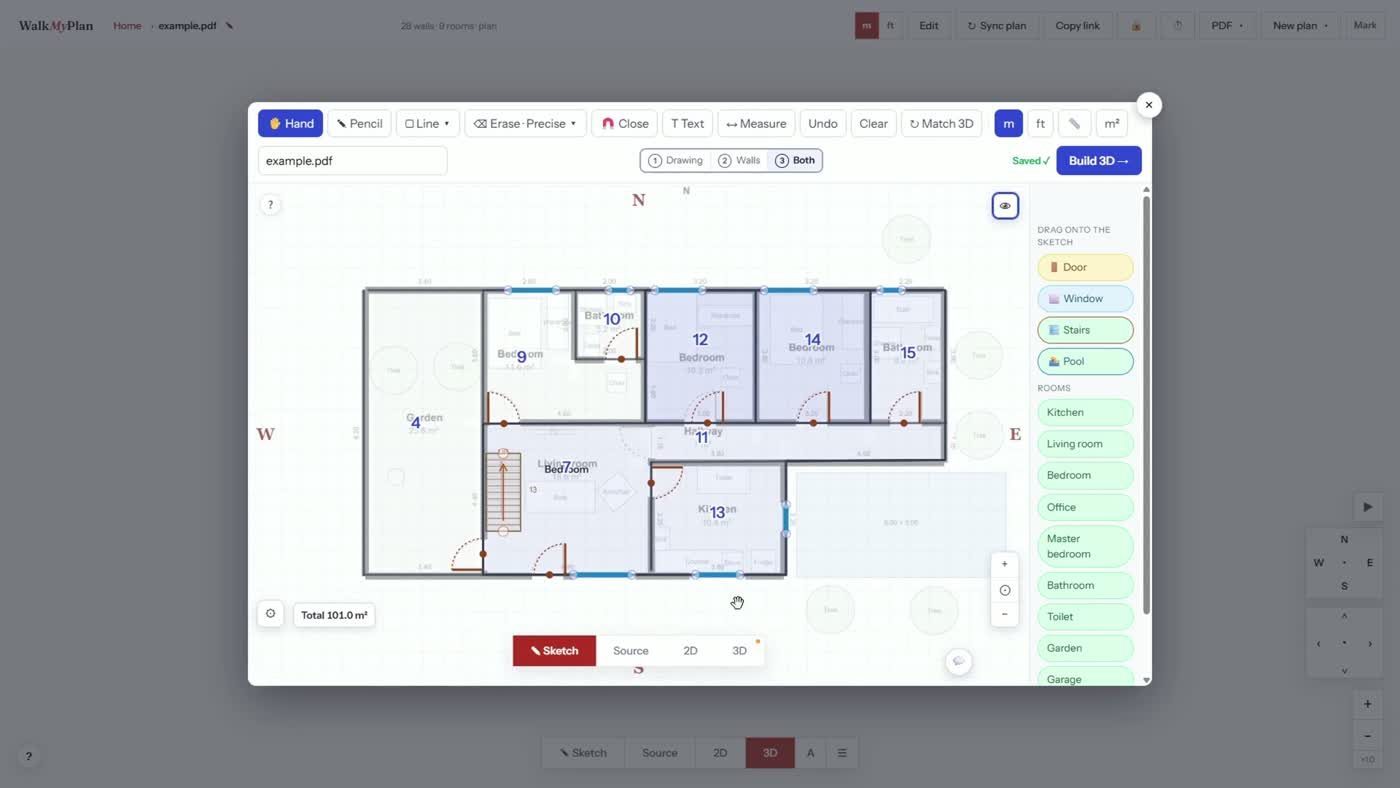

Doors and windows placed on the traced plan, with blue window marks along the outer walls and numbered rooms — Windows show blue on the outer walls; each door gets the swing the drawing shows.

Doors and windows are chips on the right. Drag one onto a wall and stretch it to match the drawing, then pick the arc so the door opens the way the PDF says. A pool, a pergola or a garden can go outside the walls in the same way.

Step 6 — Press Build 3D

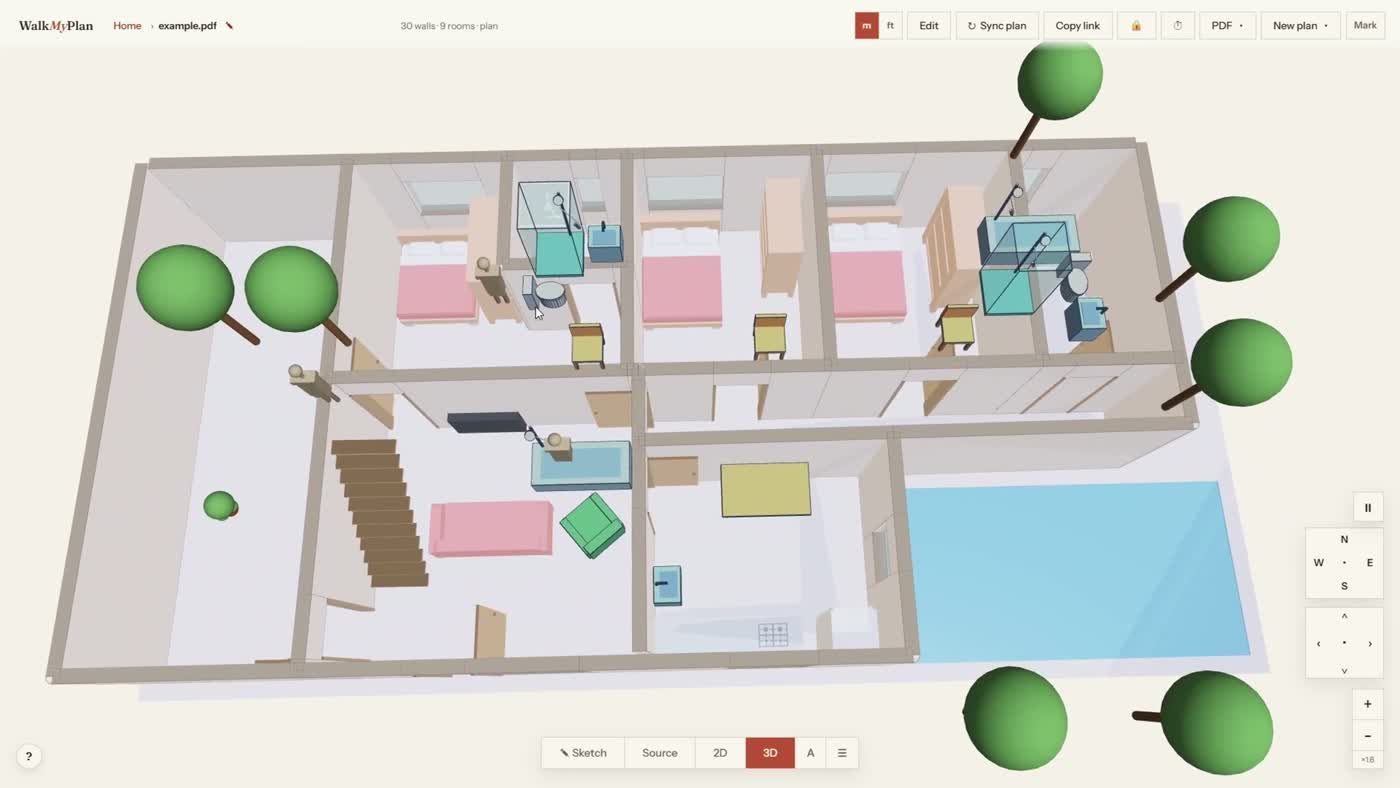

The finished 3D home built from the PDF floor plan, with furnished bedrooms, a staircase, a swimming pool and trees — The same drawing, now a house you can orbit and walk through.

A few seconds after you press Build 3D the flat PDF is a home. Orbit it, tilt it, drop to eye height and walk from room to room.

Step 7 — Check it against the drawing

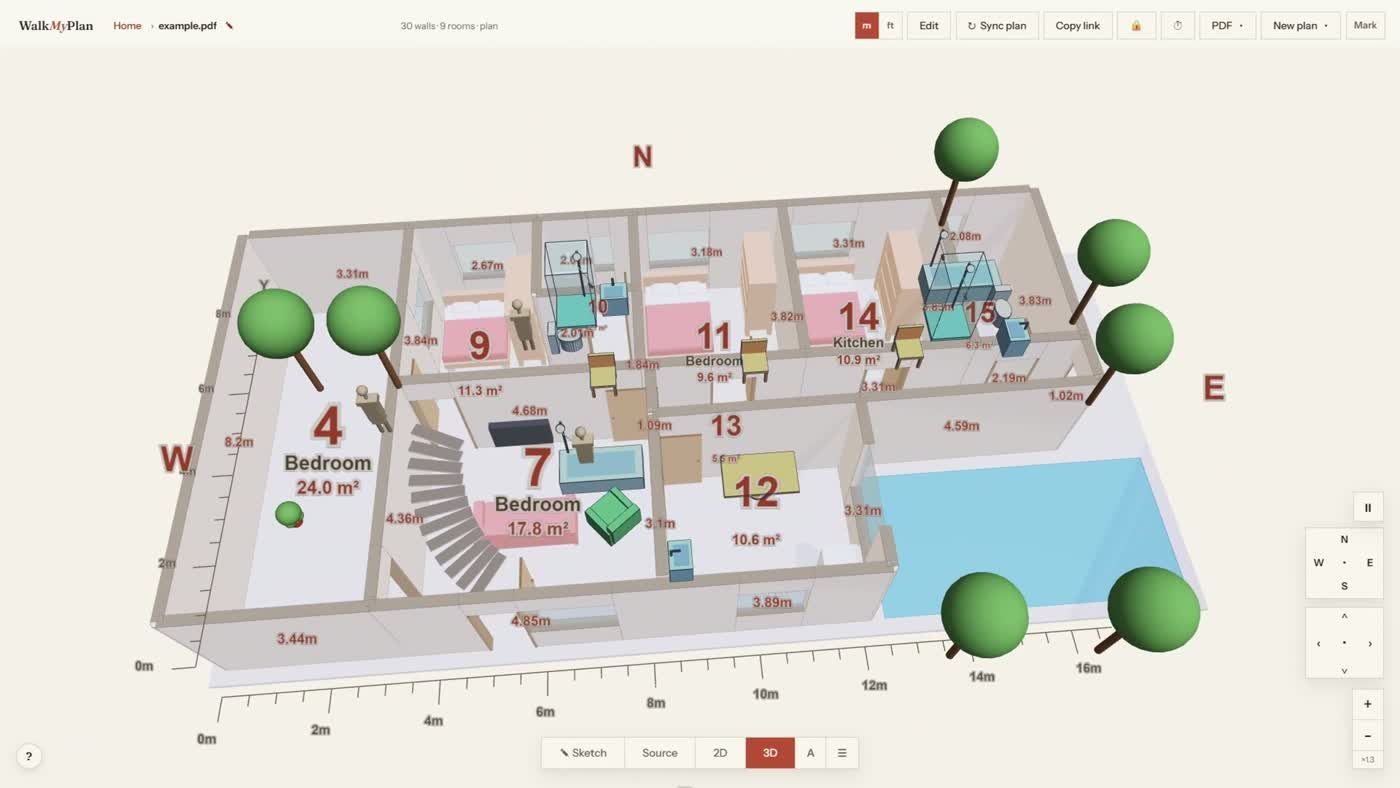

The 3D home with room areas and wall lengths labelled on top, showing a 24.0 square metre bedroom and a 17.8 square metre bedroom — Areas and wall lengths on the model itself — easy to check against the original PDF.

The model can label itself: room areas, wall lengths, and a ruler along the edge. Compare a couple of numbers against the PDF. If one is off, fix the wall in the sketch and build again — it takes seconds.

Questions people ask

Do I need CAD software?

No. Everything happens in a browser. There is nothing to install and no CAD experience needed — if you can follow a line with a pencil, you can do this.

Is converting a PDF to a 3D home free?

Yes. Uploading, tracing and building the 3D model are free. Photorealistic images use credits, and new accounts include a signup bonus.

Why do I have to trace it? Can it not read the PDF itself?

It does read it, and on a clean vector PDF it often gets most of the walls on its own. Tracing is the reliable path: it works on scans and photos too, and it puts you in control of what counts as a wall.

What if my PDF is a scan or a photo?

That works. The drawing is a backdrop to trace over, so it does not need to be machine-readable. Photos of paper drawings are fine.

Can I print the finished plan?

Yes — the PDF button exports a printable floor plan with measurements you can hand to a builder.
